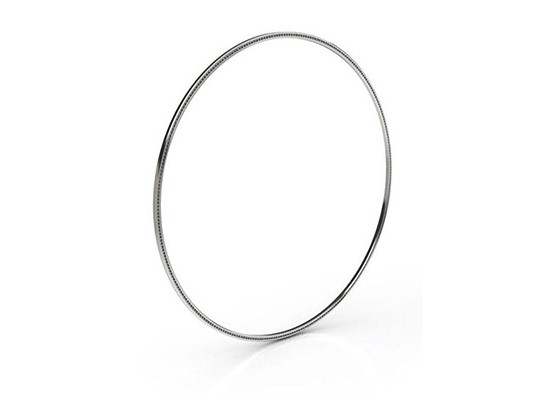

Thin-Section bearings (C type) EKA

Radial contact bearing (Type C)

Type-C Radial contact bearing is a single row deep groove ball bearing with arc raceway inside and outside the ring. Usually, the inner ring is placed eccentrically in the outer ring when assembling a bearing, and then loaded with half of full balls. After the balls are loaded, place the inner and outer rings concentrically, distribute the balls evenly, and then assemble the cage.

Another method of assembly is to load the balls through the "ball-loading hole" opened on one or both capped edges of the raceway, which can load more balls until it is full.
